名称
半导电无纺布带
- 人气：323
- 简介
半导电无纺布带<br>[产品说明]:由100%聚酯纤维布，经半导电胶浸渍烘干成型，纤维经过充分梳理，纵向强度高，电阻小。<br>[应用方式]:适合用于电缆导体和绝缘线芯外，起绑扎、隔离作用，也可用于电缆金属层下，起屏蔽作用。<br>一、主要技术指…
内容

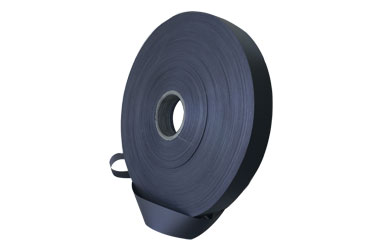

半导电无纺布带
Semi-conductive non-woven tape
[产品说明]: 由100%聚酯纤维布，经半导电胶浸渍烘干成型，纤维经过充分梳理，纵向强度高，电阻小。
Product Description: Made of 100% polyester fiber fabric, semi-conductive adhesive impregnated dry fiber after fully carding, high longitudinal strength, low resistance.
[应用方式]: 适合用于电缆导体和绝缘线芯外，起绑扎、隔离作用，也可用于电缆金属层下，起屏蔽作用。
Application: Suitable for cable conductors and out core of insulation wire, lashing, isolation can also be used for metal layer of cable, with shielding effect.
一、主要技术指标：
Main specification:
|
产品规格 Specification (μm) |
基重 Basis weight (g/m²) |
拉伸强度 Tensile strength (N/cm) |
伸长率 Elongation (%) |
表面电阻 Surface resistance (Ω) |
体积电阻 Volume Resistance (Ω.cm) |
瞬间稳定性 Short-term stability (℃) |
长期稳定性 Long-term stability (℃) |
|
100±20 |
35±10 |
20↑ |
10↑ |
1500↓ |
1*106↓ |
230 |
90 |
|
150±20 |
50±10 |
30↑ |
12↑ |
1500↓ |
1*106↓ |
230 |
90 |
|
200±30 |
75±10 |
43↑ |
12↑ |
1500↓ |
1*106↓ |
230 |
90 |
|
250±40 |
90±10 |
46↑ |
12↑ |
1500↓ |
1*106↓ |
230 |
90 |
|
除以上规格外，其它可按客户特殊要求单独设计。 In addition to the above specifications, other special requirements can design according to customers |
|||||||
二、颜色：黑色。
Color: Black
三、电气特性：电阻小，具有半导电特性，能有效弱化电场强度。机械强度高，易于各种电力电缆绕包和纵包加工。产品耐热性好，瞬间耐温高，电缆可在瞬间高温时保持性能稳定。
Electrical characteristics: Little resistance, with semi-conducting characteristics, can weaken the electric field strength effectively. Not deformed easily when in external force, used for wrapping of all kinds of power cables. Good heat resistant, high temperature resistance in short-term, cable can keep stable at high temperature.
四、分切及包装：分切最小宽度为5mm，内孔大小为52mm或76mm；收卷最大外径为800mm，纸箱包装。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging
