名称

<
>

电缆阻水带

  • 人气:581
  • 简介
    电缆阻水带<br>[产品说明]:由聚酯无纺布、粘合剂、高速膨胀高分子吸水树脂等材料加工而成。<br>[应用方式]:适合用于光缆、通讯电缆、电力电缆结构组件的阻水。
标签:全部

内容

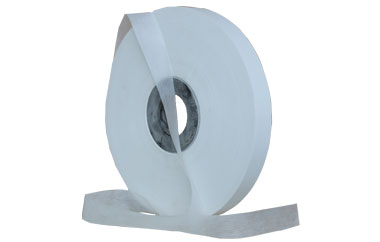

电缆阻水带

Water block tape for cable

 [产品说明]: 由聚酯无纺布、粘合剂、高速膨胀高分子吸水树脂等材料加工而成。

Product Description: Made of polyester non-woven tape, adhesives, rapid expansion polymer absorbent resin material and processed.

[应用方式]: 适合用于光缆、通讯电缆、电力电缆结构组件的阻水。

Application: Suitable for water resisting in structural components of optic cables, communication cables, power cables.

一、主要技术指标:

Main specification:

产品规格

Specification(μm)

200±20

250±20

300±30

400±40

500±50

基重

Basis weight (g/m²)

80±10

90±10

100±10

120±10

140±10

拉伸强度

Tensile strength (N/cm)

20↑

30↑

40↑

40↑

40↑

伸长率

Elongation (%)

12↑

12↑

12↑

12↑

12↑

膨胀速度

Swelling rate mm/1st min

6↑

7↑

8↑

10↑

12↑

膨胀高度

Swelling height (mm)

10↑

12↑

14↑

15↑

16↑

短期稳定性

Short-term stability (℃)

230

230

230

230

230

长期稳定性

Long-term stability (℃)

90

90

90

90

90

含水率

Moisture content (%)

9↓

9↓

9↓

9↓

9↓

除以上规格外,其它可按客户特殊要求单独设计。

In addition to the above specifications, other special requirements can design according to customers

二、颜色:白色。

Color: White

三、电气特性:电缆阻水带无腐蚀性,可以减少光电缆中水及潮气的渗入,廷长光电缆的工作寿命。

Electrical characteristics: Water block tape for cable is non corrosive, can reduce water and humidity infiltration of optical cable, and extend its lifetime.

四、分切及包装:分切最小宽度为5mm,内孔大小为52mm或76mm;收卷最大外径为800mm,纸箱包装。

Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging
