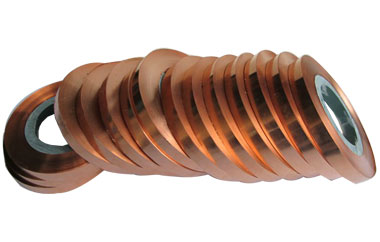

铜箔麦拉带

Copper polyester tape

[产品说明]:铜箔麦拉带也叫铜塑复合带,由铜箔、PET聚酯薄膜、粘合剂组成,具有低表面氧气特性,可以附着与各种不同基材,如金属,绝缘材料等,广泛应用于通訊、电脑、无线电等领域的电子元器件材料以及电线、电缆的屏蔽材料和FPC线路板、柔性线路板的配套产品。压延铜箔因其较电解铜箔具有高强度、高弯曲性、延展性、导电性能好、散热好、表面光泽更优等特点成为某些产品不可替代的原料 。

Product Description: Copper polyester tape also called copper plastic composite tape, consist of copper foil、PET film and adhesive, with oxygen properties in low surface, can be attached with a variety of different base materials, such as metal and insulation materials etc. Widely used in the field, such as communication, computer, radio and other electronic components. And shielding materials for cable, FPC wire board and soft wire board.  Cause rolled copper foil also called electrolytic copper foil with high strength, high flexibility, good ductility, good conductivity, heat dissipation and gloss characteristics it becomes a necessary raw materials of some products.

[应用方式]: 主要用于屏蔽性能要求较高的电缆中,如计算机电缆、信号电缆、 通讯电缆、同轴电缆等对屏蔽性能要求较高的特种电缆。聚酯薄膜起到加强铜箔拉伸强度的作用。

Application: Mainly used in shielded cables with high performance requirements, computer cable, signal cable, communication cable, and coaxial cable. Polyester film plays a role in strengthening the tensile strength of the copper foil.

一、 主要技术指标:

Main specifications:

产品规格

Specification

组成

Composition

伸长率

Elongation

(%)

抗张强

Tensile strength

(Mpa)

基重

Basis weight

(g/m²)

剥离强度

Peel strength

(N/cm)

铜厚

Cu

麦拉厚

PET

30μm

15μm

12μm

8↑

100↑

155

3↑

33μm

18μm

12μm

8↑

100↑

182

3↑

46μm

18μm

25μm

8↑

100↑

200

3↑

35μm

20μm

12μm

8↑

100↑

199

3↑

48μm

20μm

25μm

8↑

100↑

218

3↑

53μm

25μm

25μm

8↑

100↑

262

3↑

103μm

25μm

75μm

8↑

100↑

332

3↑

除以上规格外,其它可按客户特殊要求单独设计。

In addition to the above specifications, other special requirements can design according to customers

二、颜色:铜色。

Color: Copper

三、铜箔麦拉的电气特性:主要作为抗电磁干扰用,通常情况是在1-100MHZ,屏蔽衰减100dB左右使用。

Electrical characteristics: Primarily as anti-electromagnetic interference, usually use in 1-100MHZ, shielding attenuation of 100dB.

四、分切及包装:分切最小宽度为2mm,采用轴装形式;常规分切宽度为5mm,内孔大小为52mm或76mm;收卷最大外径为800mm,纸箱包装。

Slitting and packaging: Slitting minimum width of 2mm, adopt shaft packing form; conventional slitting width is 5mm, bore size is 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
