填充类材料

您现在所在的位置:首页 > 产品中心 > 填充类材料

名称

<
>

聚丙烯网状填充绳

  • 人气:390
  • 简介
    聚丙烯网状填充绳(pp网状填充)<br>[产品说明]:又叫充麻,以聚丙烯为基料,经过专用机器开网加工制成高强力网状填充材料,可根据客户需求加捻,或者加入环保阻燃剂制成阻燃型填充绳。<br>[应用方式]:普遍使用于复合型通信电缆、钢丝绞绳,电力电缆及…
标签:全部

内容

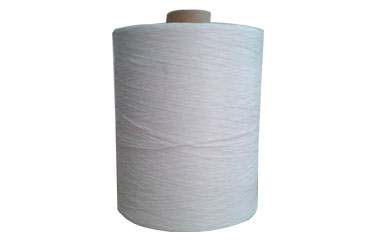

聚丙烯网状填充绳(PP网状填充)

PP yarn filler

[产品说明]: 又叫充麻,以聚丙烯为基料,经过专用机器开网加工制成高强力网状填充材料,可根据客户需求加捻,或者加入环保阻燃剂制成阻燃型填充绳。

Product Description: Also known as hemp-filled yarn, base on polypropylene, made from high tenacity net filling materials through special machines, twisting according to customer's requirement, or add environmentally friendly flame retardant agent.

[应用方式]: 普遍使用于复合型通信电缆、钢丝绞绳,电力电缆及特种阻燃耐炎电缆的轻质结构填充。

Application: Commonly used for filling in complex communication cables, steel wire rope, power cables and special fire-retardant cable.

一、主要技术指标:

Main specification:

产品规格

Specification

每公斤长度

Length/KG (M/KG)

伸长率

Elongation (%)

拉断力

Pulling strength (N)

热收缩率

Heat shrinkage (%)

捻后直径

Twisted diameter (mm)

2000D

4500

15↓

30↑

2.5↓

0.4

4000D

2400

15↓

50↑

2.5↓

0.5

5000D

1800

15↓

55↑

2.5↓

0.6

8000D

1125

15↓

80↑

2.5↓

1.0

10000D

935

15↓

90↑

2.5↓

1.2

12000D

750

15↓

100↑

2.5↓

1.5

15000D

600

15↓

150↑

2.5↓

1.8

20000D

450

15↓

200↑

2.5↓

2.2

30000D

300

15↓

300↑

2.5↓

2.6

注:除以上规格外,可以根据客户特殊要求订做。

In addition to the above specifications, other special requirements can design according to customers

二、颜色:常规颜色为白色和透明两种颜色,阻燃充麻为淡蓝色。

Color: Common color is white and transparent, flame resistant hemp-filled yarn is light blue.

三、特点:柔软性极佳,重量轻、非吸湿性材料、强度不受水份影响、抗拉强度高、抗酸碱及抗霉性佳、高频绝缘性能好、耐电压、无毒环保。

Electrical characteristics: Excellent flexibility, light weight, non-absorbent material, the intensity is not affected by moisture, high tensile strength, good anti-acid and alkaline, high insulation properties and good resistance to voltage, drug-free and environmental.

四、包装方式:编织袋或纸箱包装。

Packaging: Woven bag or carton packaging
