名称

<
>

阻水纱

  • 人气:707
  • 简介
    阻水纱<br>[产品说明]:阻水纱是由工业涤纶长丝、高分子膨胀吸水树酯和粘合剂组成。<br>[应用方式]:主要用于光缆、通信电缆、扇形线芯电力电缆,海底电缆等各部件之间的阻水填充作用。<br>一、主要技术指标:
标签:全部

内容

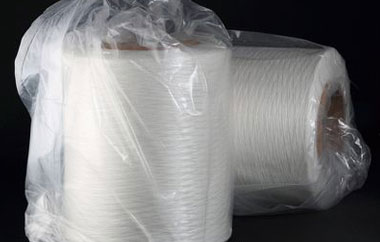

阻水纱

Water Blocking Yarn

[产品说明]:阻水纱是由工业涤纶长丝、高分子膨胀吸水树酯和粘合剂组成。

Product Description: The water blocking yarn consists of industrial polyester filament, macromolecule swelling water absorbing tree ester and adhesive.

[应用方式]: 主要用于光缆、通信电缆、扇形线芯电力电缆,海底电缆等各部件之间的阻水填充作用。

Application: It is mainly used for water blocking and filling between optical fiber cable, communication cable, fan-shaped wire core, power cable, submarine cable and other parts.

一、主要技术指标:

Main specification:

产品规格 Specification

纱线密度

Yarn density (Dtex)

基重

Basis weight (m/kg)

断裂强度

Breaking strength (N)

伸长率

Elongation (%)

膨胀速率

Swelling rate (ml/g/1st min)

长期耐温膨胀率

Long-term thermal expansion rate (150℃,24H,ml/g)

瞬间耐温膨胀率

Transient thermal expansion rate (230℃,10min,ml/g)

含水率

Melting point (150℃,1min,%)

700D

780

12857

≥50

15↓

≥60

≥65

≥65

9↓

1500D

1670

6000

≥50

15↓

≥60

≥65

≥65

9↓

2000D

2220

4500

≥60

15↓

≥60

≥65

≥65

9↓

2500D

2780

3600

≥70

15↓

≥60

≥65

≥65

9↓

3000D

3330

3000

≥100

15↓

≥60

≥65

≥65

9↓

4500D

5000

2000

≥150

15↓

≥55

≥65

≥65

9↓

6000D

6670

1500

≥200

15↓

≥50

≥55

≥55

9↓

9000D

10000

1000

≥250

15↓

≥45

≥55

≥55

9↓

18000D

20000

500

≥300

15↓

≥40

≥50

≥50

9↓

除以上规格外,其它可按客户特殊要求单独设计。

In addition to the above specifications, other special requirements can design according to customers

二、颜色:白色

Color: White

三、电气特性:阻水组具有良好的吸水性能,抗拉力强,无腐蚀性,并且不含酸碱。

Electrical characteristics: Water blocking yarn has good water absorption performance, strong tensile resistance, no corrosion, and no acid and alkali.

四、包装方式:纸箱包装,每箱24KG。

Packaging: Carton package, 24KG per package.
