名称
PET聚酯带
- 人气：184
- 简介
pet聚酯带<br>[产品说明]:麦拉带mylar/pet聚酯带利用双向拉伸聚酯材料的高引张强度与电气特性，提供电缆内部结构的包覆与绝缘。<br>[应用方式]:适用于讯号传输线，同轴电缆，控制电缆等多股结构的复合线材,及其它线材内部的绝缘用途。<br>一…
内容

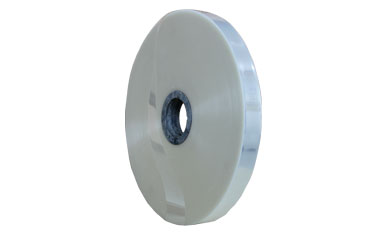

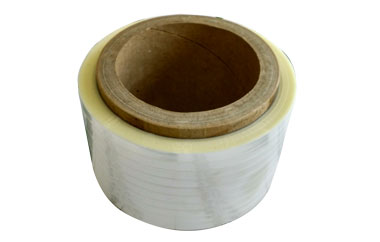

PET聚酯带
PET tape/ Mylar tape
[产品说明]: 麦拉带Mylar/PET聚酯带利用双向拉伸聚酯材料的高引张强度与电气特性，提供电缆内部结构的包覆与绝缘。
Product Description: Mylar tape/Polyester tape use high tensile strength and electrical characteristics with bi-axially polyester material, providing cable coating and insulation of internal structures.
[应用方式]: 适用于讯号传输线，同轴电缆，控制电缆等多股结构的复合线材, 及其它线材内部的绝缘用途。
Application: Suitable for composite wire materials with multiple structures, like signal transmission lines, coaxial cable, control cable, and other insulation usage with interior wire materials.
一、主要技术指标：
Main specification:
|
产品规格 Specification |
伸长率 Elongation （%） |
抗张强度 Tensile strength （kgf/m²） |
基重 Basis weight （g/m²） |
|
12μm |
35↑ |
0.18↑ |
18.25 |
|
15μm |
35↑ |
0.22↑ |
20.25 |
|
25μm |
35↑ |
0.37↑ |
33.75 |
|
38μm |
35↑ |
0.58↑ |
51.30 |
|
50μm |
35↑ |
0.75↑ |
79.65 |
|
75μm |
35↑ |
1.12↑ |
86.40 |
|
除以上规格外，其它可按客户特殊要求单独设计。 In addition to the above specifications, other special requirements can design according to customers |
|||
二、颜色：透明
Color: Transparent
三、电气特性：耐温180℃，具有较高的机械强度，卓越的绝缘屏蔽性能，耐高温、耐低温，是理想的绕包材料，主要作为绝缘及隔离，同时可以增加特性阻抗。
Electrical characteristics: Temperature resistance of 180 ° c, with high mechanical strength, excellent insulation shielding property, high temperature resistance, low temperature resistance, is an ideal wrapping material, mainly used as insulation and isolation, as well as increased impedance.
四、分切及包装：分切最小宽度为2mm，采用轴装形式；常规分切宽度为5mm，内孔大小为52mm或76mm；收卷最大外径为800mm，纸箱包装。
Slitting and packaging: Slitting minimum width of 2mm, adopt shaft packing form; conventional slitting width is 5mm, bore size is 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
