名称
内容

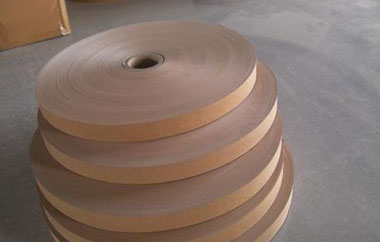

牛皮纸带Kraft paper tape
[产品说明]: 牛皮线带有黄色和白色两种，柔软而有韧性。
Product Description: Kraft paper tape has two kinds of yellow and white, soft and tough.
[应用方式]: 主要用于电机线，电磁线绕包，以及电机匝间绝缘。
Application: Mainly used for motor wire, electromagnetic winding, as well as inter turn insulation of motor.
一、主要技术指标：
Main specification:
产品规格 Specification | 断裂伸长率 Elongation atbreak （%） | 拉伸强度 Tensile strength （N/30mm） | 基重 Basis weight （g/m²） |
40±5μm | 5↑ | 60↑ | 30±3 |
50±5μm | 5↑ | 70↑ | 40±4 |
60±10μm | 5↑ | 70↑ | 45±5 |
100±10μm | 5↑ | 100↑ | 70±5 |
除以上规格外，其它可按客户特殊要求单独设计。 In addition to the above specifications, other special requirements can design according to customers | |||
二、颜色：黄色，白色
Color: Yellow, White
三、电气特性：耐高温，耐高压，耐硫化，比重轻，韧性非常好。
Electrical characteristics: High temperature resistance, high pressure resistance, vulcanization resistance, light weight, toughness is very good.
四、分切及包装：分切最小宽度为5mm，内孔大小为52mm或76mm；收卷最大外径为800mm，纸箱包装。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
