绝缘带绕包材料

您现在所在的位置:首页 > 产品中心 > 绝缘带绕包材料

名称

<
>

轻型无纺布

  • 人气:188
  • 简介
    轻型无纺布<br>[产品说明]:轻型无纺布又称薄型无纺布、pet无纺布。由100%聚酯纤维组成,经泡沫浸渍烘干压制成型,纤维经过充分梳理,纵向强度高。<br>[应用方式]:适合用于橡套电缆、电力电缆、特种电缆、通信电缆、同轴电缆、音频舞台电缆和光缆。…
标签:全部

内容

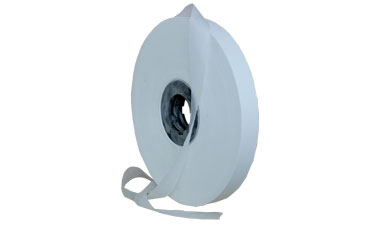

轻型无纺布

Light weight non-woven tape

[产品说明] : 轻型无纺布又称薄型无纺布、PET无纺布。由100%聚酯纤维组成,经泡沫浸渍烘干压制成型,纤维经过充分梳理,纵向强度高。

Product Description: Light non-woven tape also called thin non-woven tape, PET non-woven tape, made up of 100% polyester. After a foam impregnation, dry pressing and forming, fiber was combed fully, longitudinal strength.

[应用方式]: 适合用于橡套电缆、电力电缆、特种电缆、通信电缆、同轴电缆、音频舞台电缆和光缆。

Application: Used in rubber-sheathed cables, power cables, special cables, communication cables, coaxial cables, audio cables and optic cable.

一、主要技术指标:

Main specification:

产品规格

Specification

伸长率

Elongation (%)

抗张强度

Tensile strength (N/30mm)

基重

Basis weight (g/m²)

热收缩率

Heat shrinkage (%)

吸水速度

Water absorption speed (mm/min)

30±5μm

10↑

24↑

17±3

2.5↓

0.1↓

50±5μm

10↑

50↑

30±4

2.5↓

0.1↓

60±5μm

10↑

80↑

30±4

2.5↓

0.1↓

80±5μm

10↑

100↑

40±5

2.5↓

0.1↓

100±5μm

10↑

120↑

60±5

2.5↓

0.1↓

120±5μm

10↑

150↑

70±5

2.5↓

0.1↓

150±5μm

10↑

160↑

75±5

2.5↓

0.1↓

200±5μm

10↑

200↑

75±5

2.5↓

0.1↓

除以上规格外,其它可按客户特殊要求单独设计。

In addition to the above specifications, other special requirements can design according to customers

二、颜色:白色。

Color: White

三、电气特性:轻型无纺布厚度较薄,比重较轻,因此成本较低。且柔软性好,适合各种电线电缆绕包。并且瞬间耐温可承受180度不熔化不变形,可耐硫化。

Electrical characteristics: Thickness of light weight non-woven tape is thin, proportion is light, so the cost is little lower. Good flexibility and it is suitable for wrapping in all kinds of wires and cables. And can withstand 180 degree, not melt and deformation, can be resistant to sulfide.

四、分切及包装:分切最小宽度为5mm,内孔大小为52mm或76mm;收卷最大外径为800mm,纸箱包装。

Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
