名称

<
>

芳纶丝

  • 人气:179
  • 简介
    芳纶丝<br>[产品说明]:又叫防弹丝或凯芙拉kevlar,是一种新型高科技合成纤维,具有超高强度、高模量和耐高温、耐酸耐碱、重量轻等优良性能,其强度是钢丝的5~6倍,模量为钢丝或玻璃纤维的2~3倍,韧性是钢丝的2倍,而重量仅为钢丝的1/5左右,在560度的温…
标签:全部

内容

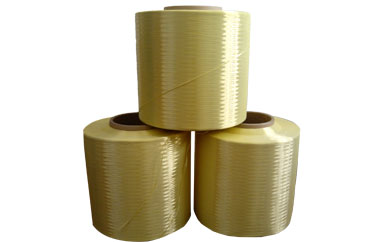

芳纶丝

Aramid yarn/Kevlar

[产品说明]: 又叫防弹丝或凯芙拉Kevlar,是一种新型高科技合成纤维,具有超高强度、高模量和耐高温、耐酸耐碱、重量轻等优良性能,其强度是钢丝的5~6倍,模量为钢丝或玻璃纤维的2~3倍,韧性是钢丝的2倍,而重量仅为钢丝的1/5左右,在560度的温度下,不分解,不融化。它具有良好的绝缘性和抗老化性能,具有很长的生命周期。芳纶的发现,被认为是材料界一个非常重要的历史进程。

Product Description: Also called bulletproof yarn or Kevlar, is a new high-tech synthetic, has ultra-high strength, high modulus volume, resistance high temperature, acid and alkali resistant, and light weight, such as 5 ~ 6 times that of steel wire on its strength, modulus of steel wire or fiber glass 2 ~ 3 times, toughness is 2 times of wire, and weight is only about 1/5 of the steel wire, under the temperature of 560 ° C, Won't to resolve and melt. It has good insulation properties and anti-aging properties, with a long life cycle. Aramid finds, is considered to be a very important historical material processes.

[应用方式]: 用于高性能电线电缆、光纤光缆、海缆等

Application: Used in high-performance wire and cable, optical cable and submarine cables etc.

一、主要技术指标:

Main specification:

产品规格

Specification

断裂强度

Breaking strength cN/dtex

密度

Density (g/cm3)

热收缩率

Heat shrinkage (%)

伸长率

Elongation (%)

150D

20.92↑

1.44-1.67

2.0↓

3.55

250D

20.92↑

1.44-1.67

2.0↓

3.55

300D

20.92↑

1.44-1.67

2.0↓

3.55

500D

20.92↑

1.44-1.67

2.0↓

3.55

1000D

20.92↑

1.44-1.67

2.0↓

3.55

1500D

20.92↑

1.44-1.67

2.0↓

3.55

除以上规格外,其它可按客户特殊要求单独设计。

In addition to the above specifications, other special requirements can design according to customers

二、颜色:黄色。

Color: Yellow

三、特性:抗拉性能是所有纤维中最好的,耐高温,软化点367-370℃,长期使用温度为200℃以上,防火性能好,在火焰中不熔融,离开火源有自熄性,抗切割,热稳定性好,在高温下不熔,玻璃化转变温度约345°C; 拉伸性能好,弯曲性能一般,打结易形成毛刺: 耐普通有机溶剂及盐类溶液,耐强酸、强碱性差;对紫外线敏感,长时间暴露在阳光下,强度衰减约40%;

Characteristics: Anti-pulled properties is the best in all fiber, resistance high temperature, softening points is 367-370 ℃, long-term using temperature for 200 ℃ above, fireproof properties is good, not melting in the flame, has self-extinguishing, anti-cutting, heat stability when left fire, not melt in high temperature, glass of change temperature about 345 ° c; good stretch properties, general bending properties, easy formed Burr if knot: resistance general organic solvent and the salts solution, resistance strong acid and alkaline is poor; on UV sensitive when exposed in sunshine for long time, strength attenuation about 40%;

四、包装方式:编织袋或纸箱包装。每箱24KG.

Packaging: Woven bag or carton packaging, 24kg per bag.
