名称

<
>

碳纤维丝

  • 人气:196
  • 简介
    碳纤维丝<br>[产品说明]:碳纤维长丝它不仅具有碳材料的固有本征特性,又兼具纺织纤维的柔软可加工性,是新一代增强纤维。碳纤维是一种力学性能优异的新材料,它的比重不到钢的1/4,抗拉强度是钢的7~9倍以上,抗拉弹性模量亦高于钢。<br>[应用方式]…
标签:全部

内容

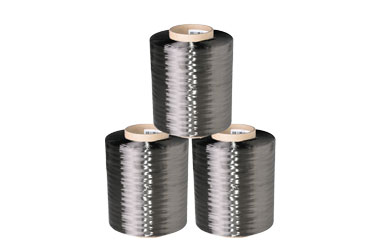

碳纤维丝

Carbon fiber yarn

[产品说明]: 碳纤维长丝它不仅具有碳材料的固有本征特性,又兼具纺织纤维的柔软可加工性,是新一代增强纤维。碳纤维是一种力学性能优异的新材料,它的比重不到钢的1/4,抗拉强度是钢的7~9倍以上,抗拉弹性模量亦高于钢。

Product Description: Carbon fiber yarn not only with the intrinsic properties of the material, soft processing of textile fibers, is a new generation of reinforcement fibers. Carbon fiber is a new material with excellent mechanical properties and 1/4 of its specific gravity less than steel, tensile strength is 7~9 times more than steel, tensile modulus of elasticity than steel.

[应用方式]: 广泛用于民用,军用,建筑,化工,工业,航天以及超级跑车领域。碳纤维可加工成织物、毡、席、带、纸及其他材料。碳纤维在土木建筑领域:碳纤维也应用在工业与民用建筑物、铁路公路桥梁、隧道、烟囱、塔结构等的加固补强。

Application: Widely used in civil, military, construction, chemical, industrial, aerospace and super sports fields. Carbon fiber can be processed into fabric, carpet, seats, Ribbon, paper and other materials. Carbon fiber in the field of construction: carbon fiber is also used in structural reinforcement in industrial and civil construction, railway and highway bridges, tunnels, chimneys, and towers.

一、主要技术指标:

Main specification:

产品规格Specification

拉伸强度

Tensile strength (Mpa)

密度

Density (g/cm3)

电阻

Resistance (Ω.cm)

伸长率

Elongation (%)

1K

2740

1.80±0.04

1.0*10-3

1.0

3K

3530

1.80±0.04

1.0*10

1.0

6K

4210

1.80±0.04

1.0*10

1.0

12K

4410

1.80±0.04

1.0*10

1.0

24K

4900

1.80±0.04

1.0*10

1.0

48K

5490

1.80±0.04

1.0*10

1.0

除以上规格外,其它可按客户特殊要求单独设计。

In addition to the above specifications, other special requirements can design according to customers

二、颜色:黑色。

Color: Black

三、电气特性:抗拉性能是所有纤维中最好的,耐高温,软化点367-370℃,长期使用温度为200度℃以上,防火性能好,在火焰中不熔融,离开火源有自熄性。抗切割,热稳定性好,在高温下不熔,玻璃化转变温度约345°C; 拉伸性能好,弯曲性能一般,打结易形成毛刺; 耐普通有机溶剂及盐类溶液,耐强酸、强碱性差;对紫外线敏感,长时间暴露在阳光下,强度衰减约40%。

Electrical characteristics: Anti-pulled properties is the best in all fiber, resistance high temperature, softening points is 367-370 ℃, long-term using temperature for 200 ℃ above, fireproof properties is good, not melting in the flame, has self-extinguishing, anti-cutting, heat stability when left fire, not melt in high temperature, glass of change temperature about 345 ° c; good stretch properties, general bending properties, easy formed Burr if knot: resistance general organic solvent and the salts solution, resistance strong acid and alkaline is poor; on UV sensitive when exposed in sunshine for long time, strength attenuation about 40%;

四、包装方式:编织袋或纸箱包装。每箱24KG。

Packaging: Woven bag or carton packaging, 24kg per bag
